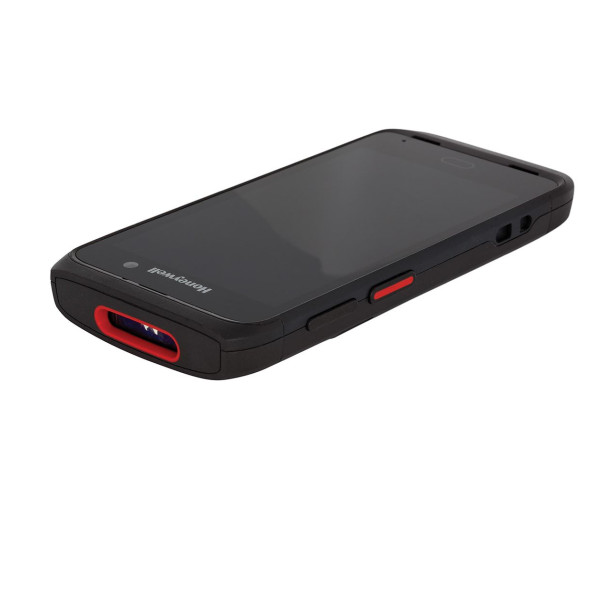

霍尼韋爾CT40 XP盤點手持終端

產品說明

產品特點

技術參數

霍尼韋爾CT40 XP盤點手持終端介紹

霍尼韋爾CT40 XP盤點手持終端是honeywell Dolphin CT40的升級款，CT40 XP基于honeywell的 Mobility Edge? 平臺構建，是一款智能多功能企業級移動解決方案，采用堅固耐用的設計，可提高生產率，提供更長的生命周期和更好的安全性。honeywell CT40 XP與霍尼韋爾很新的 FlexRange? 成像器集成后，可以捕獲從幾厘米到十米（32.8英尺）的零售好層貨架條形碼。它外形小巧輕便，配備一個 8 兆像素的前置相機。配備 1920 x 1080 像素的全高清顯示屏，可用于團隊培訓、遠程檢測等。CT40 XP 采用“設備查找器”解決方案，即使電池在一段時間后耗盡，也能輕松定位丟失或錯放的設備。這有助于保護您的投資并實現運營效率。CT40 XP 采用堅固的封裝和保護套，可承受 1.8 米高處的反復跌落，提供可靠、安全的多年性能，很大限度地提高投資回報。霍尼韋爾CT40 XP 集成了功能強大的高通?處理器，可輕松升級到 Android? 11，并符合 Android Enterprise Recommended (AER) 的要求。

霍尼韋爾CT40 XP盤點手持終端

霍尼韋爾CT40 XP盤點手持終端特性

Mobility Edge 企業管理工具允許公司一次性測試和驗證應用、加速整個企業的部署、優化設備性能、簡化維護并延長產品生命周期。

借助霍尼韋爾創新的 FlexRange 掃描成像器、13 兆像素自動對焦相機和 8 兆像素前置相機，您可以從幾厘米到 10 米（32.8 英尺）準確地獲取數據。

憑借第二個 BLE 信標，您可輕松定位丟失的設備，防止損失生產率，即使電池耗盡時也能如此。包括電池?zé)岵灏喂δ埽瑢?shí)現不間斷運行。

實現人體工學和堅固性的平衡。借助保護套，可進一步避免磨損。易于充電，不用取下硬保護套。

與霍尼韋爾連接的應用程序以及第三方應用程序（例如，MDM、Push to Talk 和 VoIP 軟件）輕松兼容并無縫集成，以很大程度地提高效率并保護您的投資。

霍尼韋爾CT40 XP盤點手持終端技術參數

MECHANICAL
Dimensions	162 mm x 77 mm x 18.2 mm(6.4 in x 3.0 in x 0.7 in)
Weight	289 g (10.1 oz) with battery pack
Display Size	12.7 cm (5.0 in)
Resolution	High Defnition (1920 x 1080)
Backlight	LED
Touchscreen	Multi-touch capacitive,Corning? Gorilla Glass? 5
Hard Keys	Volume up/down key, left/right scan, power button, push to talk button
Soft Key	On-screen scan button,reprogrammable into an application quicklaunch key
Audio	3.5 mm jack (available on Wi-Fi version only), PTT, VoIP ready, speaker,HAC-compliant
I/O Ports	Durable, custom IO connector,USB Type C
ENVIRONMENTAL
Operating Temperature	-20°C to +50°C(-4°F to +122°F)
Storage Temperature	-30°C to +70°C(-22°F to +158°F)
Humidity	5% to 95% (non-condensing)
Drop	Multiple 1.2 m (4 ft) drops to concrete at -10°C to +50°C (+14°F to +122°F).Multiple drops from 1.8 m (6 ft) to concrete per MIL-STD-810G with rubber boot
Tumble	1,000 times at 0.5 m (1.6 ft)
ESD	±8 kV direct; ±15 kV air
Environmental Sealing	Independently certifed to meet IP67 and IP65 standards for moisture and particle intrusion
SYSTEM ARCHITECTURE
Processor	2.2 GHz Qualcomm?Snapdragon? 660 octa-core
Memory	4 GB DDR4x RAM, 32 GB Flash
Operating System	Starts with Android 9.1;upgradable through Android 12 and 13
Default Language	World Wide English
Storage Expansion	User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)
Battery	Li-Ion, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools,super capacitor
Hours of Operation	12+ hours (depends on use)
Scan Engine	Honeywell FlexRange, N6703 Slim Imager 1D/2D barcode symbologies,Honeywell SDKs for Android
Application Software	Honeywell utilities and demos
Camera	13-megapixel color camera with autofocus, 8-megapixel front-facing camera
Sensor	Ambient light sensor, proximity sensor, accelerometer, gyroscope
WARRANTY
One-year factory warranty
WIRELESS CONNECTIVITY
WWAN	WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU) LTE Advanced Support Up to 400 Mbps CAT13 LTE downlink Up to 75 Mbps CAT5 LTE uplink
LTE (FDD)	Bands 1, 2, 3, 4, 5, 7, 8, 12, 13,17, 19, 20, 25, 26, 28, 29
LTE (TDD)	Bands 38, 39, 40, 41
UMTS/HSPA+ (3G)	Bands 1, 2, 4, 5, 6, 8, 9, 19 GSM/GPRS/EDGE Quad-Band(850/900/1800/1900 MHz)
1xRTT/EV-DO	Bands BC0, BC1, BC10(B26BW)
WLAN	IEEE 802.11 a/b/g/n/ac;Wi-Fi certifed, 2*2 MIMO
Additional WLAN Features	802.11 d/e/h/i/k/r/u/w
WLAN Security	OPEN, WEP, WPA/WPA2(Personal and Enterprise)
Supported EAP	TLS, PEAP, TTLS, PWD,LEAP CCX Version 4 certifed
Bluetooth?	V5.0 Bluetooth and second BLE supported
Bluetooth Profles	HFP, PBAP, A2DP,AVRCP, OPP, SPP, GATT
NFC	Integrated Near Field Communication
VPN	IPSec V4/L2TP, PPTP
Push to Talk (PTT)	Supported
GPS Supported Protocols	Simultaneous GNSS Receiver Support for GPS, GLONASS,Galileo and BeiDou
